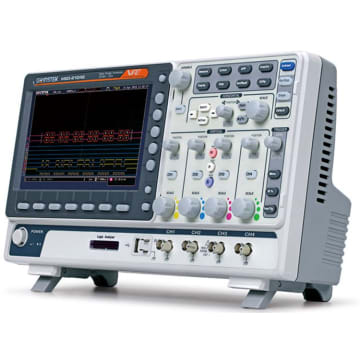

Máy hiện sóng GW INSTEK MDO-2204EG

46.700.000₫

Mã sản phẩm: GW INSTEK MDO-2204EG (CE)

Thương hiệu: GWinstek

Tình trạng: Còn hàng

GW INSTEK MDO-2204EG  (CE)  SA,  25MHZ AWG

Contact us for best price.

Số lượng:
MUA NGAY

GW INSTEK MDO-2204EG  (CE)  SA,  25MHZ AWG

  • Resolution
  • 8 bit
  • 1mV~10V/div
  • Input Coupling
  • AC, DC, GND
  • Input Impedance
  • 1MΩ// 16pF approx.
  • DC Gain Accuracy
  • ±(3%)when 2mV/div or greater is selected
  • ±(5%)when 1mV/div is selected;
  • Polarity
  • Normal & Invert
  • Maximum Input Voltage
  • 300Vrms, CAT I
  • Offset Position Range
  • 1mV/div ~ 20mV/div : ±0.5V
  • 50mV/div ~ 200mV/div : ±5V
  • 500mV/div ~ 2V/div : ±25V
  • 5V~10V/div : ±250V
  • Waveform Signal Process
  • +, -, ×, ÷, FFT, User Defined Expression.
  •
  • FFT:1Mpts
  • FFT:Spectral magnitude. Set FFT Vertical Scale to Linear RMS or dBV RMS, and FFT Window to Rectangular, Hamming, Hanning, or Blackman.
  • Trigger
  • Source
  • CH1 ,CH2, CH3, CH4, Line, EXT*
  • *dual channel models only
  • Trigger Mode
  • Auto (supports Roll Mode for 100 ms/div and slower), Normal, Single Sequence
  • Trigger Type
  • Edge, Pulse Width(Glitch), Video, Pulse Runt, Rise & Fall(Slope), Alternate,tme out, Event-Delay(1~65535 events), Time-Delay(Duration,4nS~10S), Bus
  • Holdoff range
  • 4ns~10s
  • Coupling
  • AC,DC,LF rej. ,HF rej. ,Noise rej.
  • Sensitivity
  • 1div
  • External Trigger
  • Range
  • ±15V
  • Sensitivity
  • DC ~ 100MHz Approx. 100mV
  • 100MHz ~ 200MHz Approx. 150mV
  • Input Impedance
  • 1MΩ±3%~16pF
  • Horizontal
  • Time base Range
  • 1ns/div ~ 100s/div (1-2-5 increments)
  • ROLL: 100ms/div ~ 100s/div
  • Pre-trigger
  • 10 div maximum
  • Post-trigger
  • 2,000,000 div maximum.
  • Time base Accuracy
  • ±50 ppm over any ≥ 1 ms time interval
  • Real Time Sample Rate
  • Max.:1GSa/s (4ch model)
  • Per channel 1GSa/s (2ch model)
  • Record Length
  • Per Channel 10M pts
  • Acquisition Mode
  • Normal, Average, Peak Detect, Single
  • Peak Detection
  • 2ns (typical)
  • Average
  • selectable from 2 to 256
  • X-Y Mode
  • X-Axis Input
  • Channel 1; Channel 3*
  • *four channel models only
  • Y-Axis Input
  • Channel 2; Channel 4*
  •
  • *four channel models only
  • Phase Shift
  • ±3° at 100kHz
  • Cursors and Measurement
  • Cursors
  • Amplitude, Time, Gating available;Unit:Seconds(s),Hz(1/s) ,Phase(degree) ,Ration(%)
  • Automatic Measurement
  • 38 sets: Pk-Pk, Max, Min, Amplitude, High, Low, Mean, Cycle Mean, RMS, Cycle RMS, Area, Cycle Area, ROVShoot, FOVShoot, RPREShoot, FPREShoot, Frequency, Period, RiseTime, FallTime, +Width, -Width, Duty Cycle, +Pulses, -Pulses, +Edges, -Edges, %Flicker ,Flicker Idx,FRR, FRF, FFR, FFF, LRR, LRF, LFR, LFF, Phase
  • Control Panel Function
  • Auto counter
  • 6 digits, range from 2Hz minimum to the rated bandwidth
  • Autoset
  • Single-button, automatic setup of all channels for vertical, horizontal and trigger systems, with undo Autoset
  • Save Setup
  • 20 sets
  • Save Waveform
  • 24 sets
  • Display
  • TFT LCD Type
  • 8" TFT LCD WVGA color display
  • Display Resolution
  • 800 horizontal × 480 vertical pixels (WVGA)
  • Interpolation
  • Sin(x)/x
  • Waveform Display
  • Dots, vectors, variable persistence (16ms~4s), infinite persistence
  • Waveform Update Rate
  • 120,000 waveforms per second, maximum
  • Display Graticule
  • 8 x 10 divisions
  • Display mode
  • YT ;XY
  • Interface
  • USB Port
  • USB 2.0 High-speed host port X1, USB 2.0 High-speed device port X1
  • Ethernet(LAN) Port
  • RJ-45 connector, 10/100Mbps with HP Auto-MDIX
  • Go-NoGo BNC
  • 5V Max/10mA TTL open collector output
  • Kensington Style Lock
  • Rear-panel security slot connects to standard Kensington-style lock.
  • Spectrum Analyzer Specifications
  • Frequency range
  • DC~500MHz (Max. ,Max.bandwidth~500MHz uncalibrated)
  • Span
  • 1kHz~500MHz(Max.)
  • Resolution bandwidth
  • 1Hz ~ 500kHz(Max.)
  • Reference level
  • -50 dBm to +40dBm in steps of 5dBm
  • Vertical units
  • dBV RMS; Linear RMS; dBm
  • Vertical position
  • -12divs to +12divs
  • Vertical scale
  • 1dB/div to 20dB/div in a 1-2-5 Sequence
  • Display average noise level
  • 1V/div < -50dBm, Avg : 16
  • 100mV/div < -70dBm, Avg : 16
  • 10mV/div < -90dBm, Avg : 16
  • Spurious response
  • 2nd harmonic distortion< 40dBc
  • 3rd harmonic distortion< 45dBc
  • Frequency domain trace types
  • Normal ; Max Hold ; Min Hold ; Average (2 ~ 256)
  • Detection methods
  • Sample ; +Peak ; -Peak ; Average
  • FFT Windows
  • FFT Factor :
  • Hanning 1.44
  • Rectangular 0.89
  • Hamming 1.30
  • Blackman 1.68
  • AWG Specifications
  • Channels
  • 2
  • Sample Rate
  • 200 Msa/s
  • Vertical Resolution
  • 14 bits
  • Max. Frequency
  • 25 MHz
  • Waveforms
  • Sine, Square, Pulse, Ramp, DC, Noise, Sinc, Gaussian, Lorentz, Exponential Rise, Exponential Fall, Haversine, Cardiac
  • Output Range
  • 20 mVpp to 5 Vpp, HighZ;10 mVpp to 2.5 Vpp, 50 Ω
  • Output Resolution
  • 1mV
  • Output Accuracy
  • 2% (1 kHz)
  • Offset Range
  • ±2.5 V, HighZ;±1.25 V, 50 Ω
  • Offset Resolution
  • 1mV
  • Sine
  • Frequency Range
  • 100mHz to 25MHz
  • Flatness
  • ±0.5 dB( relative to 1kHz)
  • Harmonic Distortion
  • -40 dBc
  • Stray (Non-harmonic)
  • -40 dBc
  • Total Harmonic Distortion
  • 1%
  • S/N Ratio
  • 40 dB
  • Square/Pulse
  • Frequency Range
  • 100 mHz to 15MHz
  • Rise/Fall time
  • <15ns
  • Overshoot
  • <3%
  • Duty cycle
  • Square:50%;Pulse:0.4%~99.6%
  • Min. Pulse Width
  • 30 ns
  • Jitter
  • 500 ps
  • Ramp
  • Frequency Range
  • 100mHz~1MHz
  • Linearity
  • 1%
  • Symmetry
  • 0 to 100%
