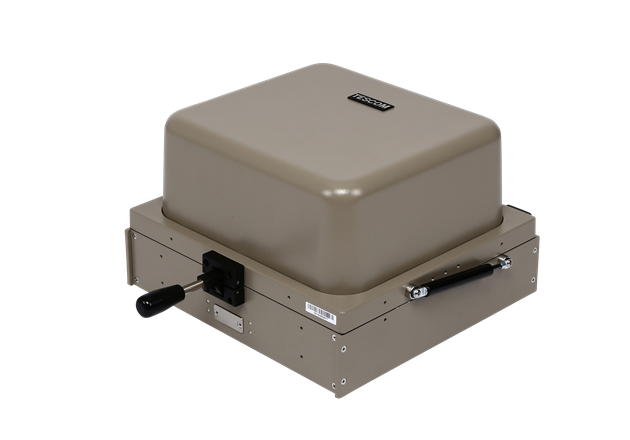

Tescom Shield box-5916A Buồng thử sóng

Nubicom là Nhà phân phối ĐỘC QUYỀN Sản phẩm TESCOM tại Việt Nam

• Inside : 328(W) x 298(D) x 206(H) mm

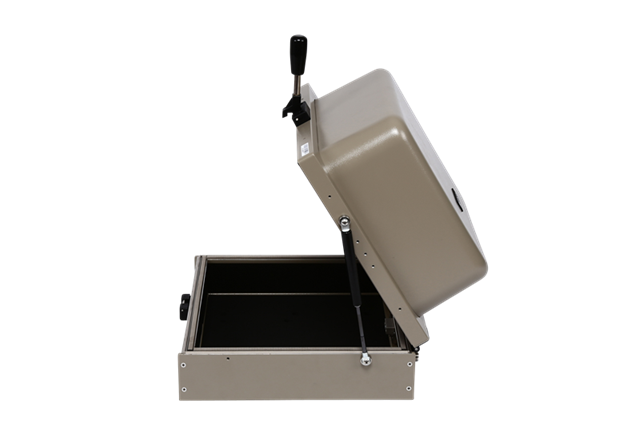

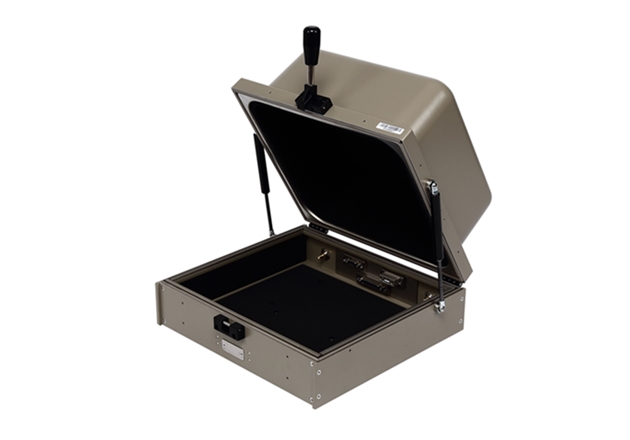

• Outside : 399(W) x 473(D) x 239(H) mm, lid closed. 495(H) mm, lid open.

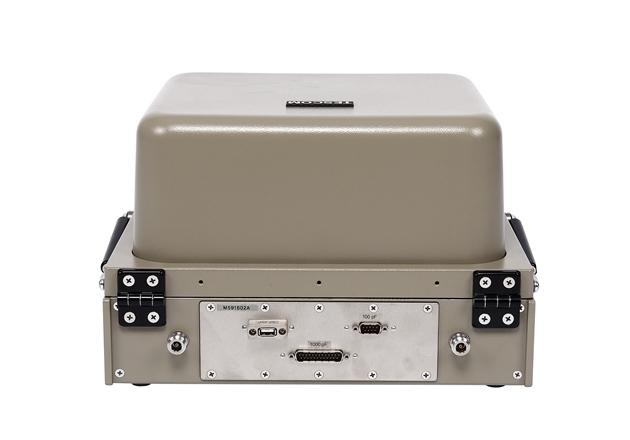

• Basic I/O connectors

• RF connectors : two(2) N(f) outside and SMA(f) inside

• Dimensions

• Weight : Approx.10 kg

• Size : 460(W) x 530(D) x 340(H) mm
• Weight : Approx. 11 kg

• Packing (The size or weight of a package may vary on how to pack a package.)

The shielding effectiveness below is measured when the blank panel is mounted; other I/O interface panel results a different shielding effectiveness of the shield box.

• Frequency / Shielding effectivness (dB)

  • 0.1 GHz to 3 GHz : > 70 dB

  • 3 GHz to 6 GHz : > 70 dB

  • 6 GHz to 12 GHz : > 70 dB

  •   In reference to metal plate (0 dB @ 0.5 GHz to 12 GHz), signal reduction is measured with the RF absorber inserted.
• Frequency / Reflectivity (dB)
• 0.5 GHz to  3 GHz : 3 dB (Typ.)
•  3 GHz to 6 GHz : 6 dB (Typ.)
• 6 GHz to 12 GHz : 10 dB (Typ.)
