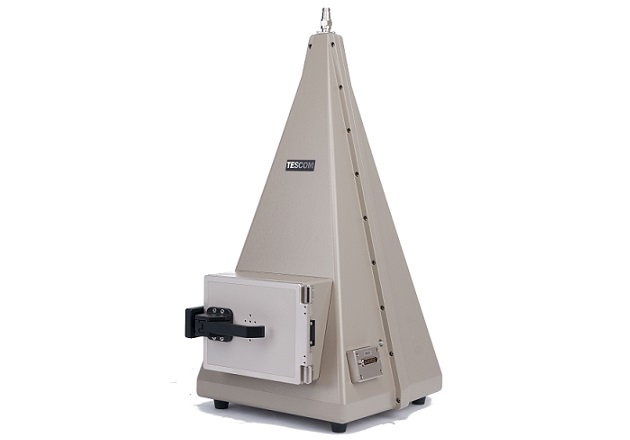

Tescom Shield box-5062C Buồng thử sóng TEMCELL

Nubicom là Nhà phân phối ĐỘC QUYỀN Sản phẩm TESCOM tại Việt Nam

Specifications

General Specification

VSWR: < 1.7 , 100 MHz ~ 6 GHz
Effective Cell Height: 220 mm
Field Strength at Center of Cell: 13 dB mV/meter at 1 mV input
RF Connectors without module: 1 N(f) topside, 1 SMA(f) outside and SMA(f) inside
Dimension:    Inside 240(W) x 205(D) mm

Outside 344(W) x 403(D) x 675(H) mm

Door Size: 176(W) x 130(H) mm
Weight: approx. 21 kg
Packing Size:  470(W) x 550(D) x 830(H) mm
Packing Weight:  Approx. 25 kg

Typical RF Shielding

100 to 2000 MHz:  > 80 dB
2000 to 3000 MHz:  > 80 dB
3000 to 6000 MHz:  > 60 dB

* The shield effectiveness below is measured when the blank panel is mounted; other I/O interface panel results a different shielding effectiveness of the TEM Cell.
