Bluetooth Tester TC-3000C

Nubicom là Nhà phân phối ĐỘC QUYỀN Sản phẩm TESCOM tại Việt Nam

Output / Input Frequency

Range: 2400 MHz ~ 2500 MHz

Accuracy: ±46 Hz + Frequency reference drift

Resolution: 1 KHz

Output Level

Range: 0 ~ -80 dBm

Accuracy: ±1 dB

Resolution: 0.1 dB

Input Level

Range: -10 ~ -80 dBm (+20 dBm ~ -30 dBm with 30 dB attenuator ON)

Accuracy: ±1 dB

Resolution: 0.1 dB

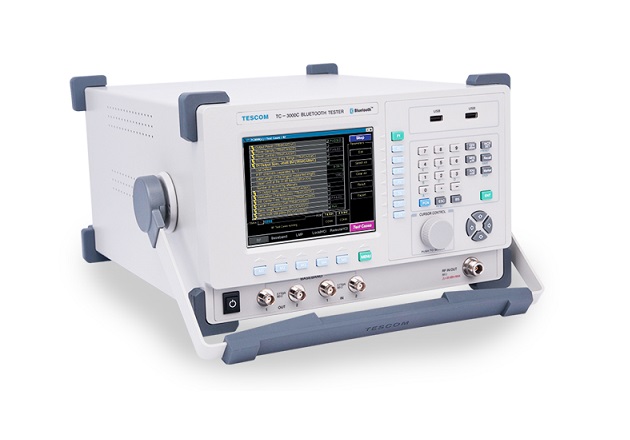

Front Pannel

RF In/Out port: N-type, 50 ohm, VSWR＜ 1.6

Baseband In/Out ports: 4 BNC

- IN: input impedance 50 ohms, Max input level is ±1 Vpp

- OUT: output impedance 50 ohms, normal output level is  ±1 Vpp, DC coupled

- RX (I,Q), TX (I,Q), Demodulaton, Modulation, RX and TX bit streams, RX and TX Clocks

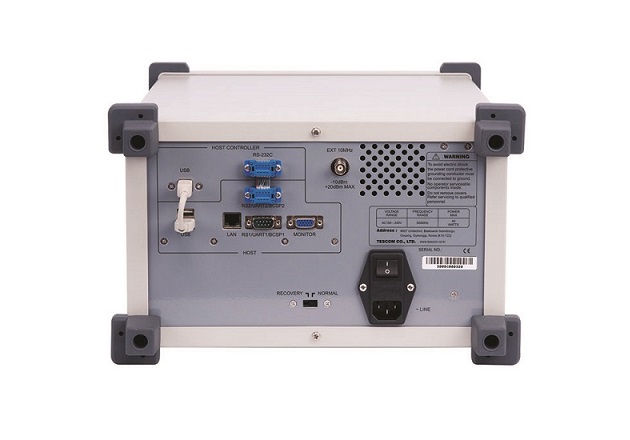

Rear Pannel

HCI interface for DUT: RS-232C, USB, 2-Wire, UART

Remote programming interface: TCP/IP (LAN), RS-232C

Miscellaneous

Line voltage: 100 ~ 240 VAC, 50/60 Hz

Dimension: 375 (W) x 432 (D) x 220 (H) mm

Weight: 10 Kg

Packing size: 445 (W) x 515 (D) x 310 (H) mm

Packing weight: 14 Kg
