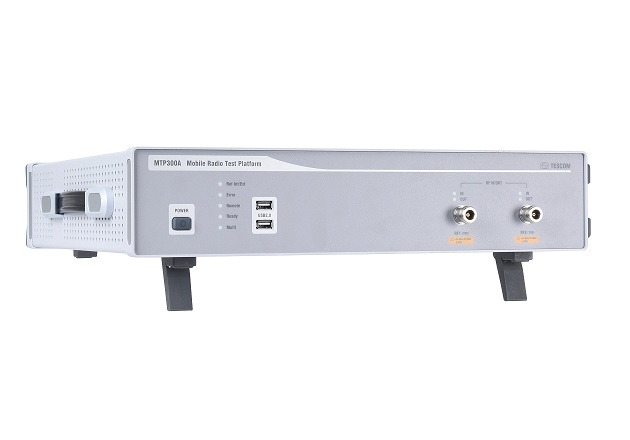

Connectivity Tester Platform MTP300A

Nubicom là Nhà phân phối ĐỘC QUYỀN Sản phẩm TESCOM tại Việt Nam

Frequency

Range: 650 MHz to 6000 MHz

Resolution: 10 Hz

Output Power Range (Continuous Wave)

▷ RF1 Port (TDD)

- 650 MHz to 4800 MHz:  -96 dBm to 0 dBm
- 4800 MHz to 5600 MHz:  -95 dBm to 0 dBm
- 5600 MHz to 6000 MHz:  -94 dBm to -2 dBm

▷ RF2 Port (FDD)

- 650 MHz to 4800 MHz:  -95 dBm to 0 dBm
- 4800 MHz to 5600 MHz:  -95 dBm to -5 dBm
- 5600 MHz to 6000 MHz:  -95 dBm to -8 dBm

▷ Resolution: 0.01 dB

Input Power Range (Continuous Wave)

RF1 Port(TDD) :  -74 dBm to +21 dBm
RF2 Port(FDD) :  -70 dBm to +25 dBm

Miscellaneous

Line voltage: 100 ~ 240 VAC, 50~60 Hz

Power consumption: < 10 W (standby) / 80 W (typical) / 120 W (max)

Dimension: 440 (W) mm x 439 (D) mm x 100.5 (H) mm
Weight: 8.0 kg
Packing Size: 540 (W) mm x 540 (D) mm x 240 (H) mm
Packing weight: Approx. 10.0 kg


* Please refer to the data sheet for more details.
