Máy hiện sóng miền hỗn hợp. Tektronix MDO4104C

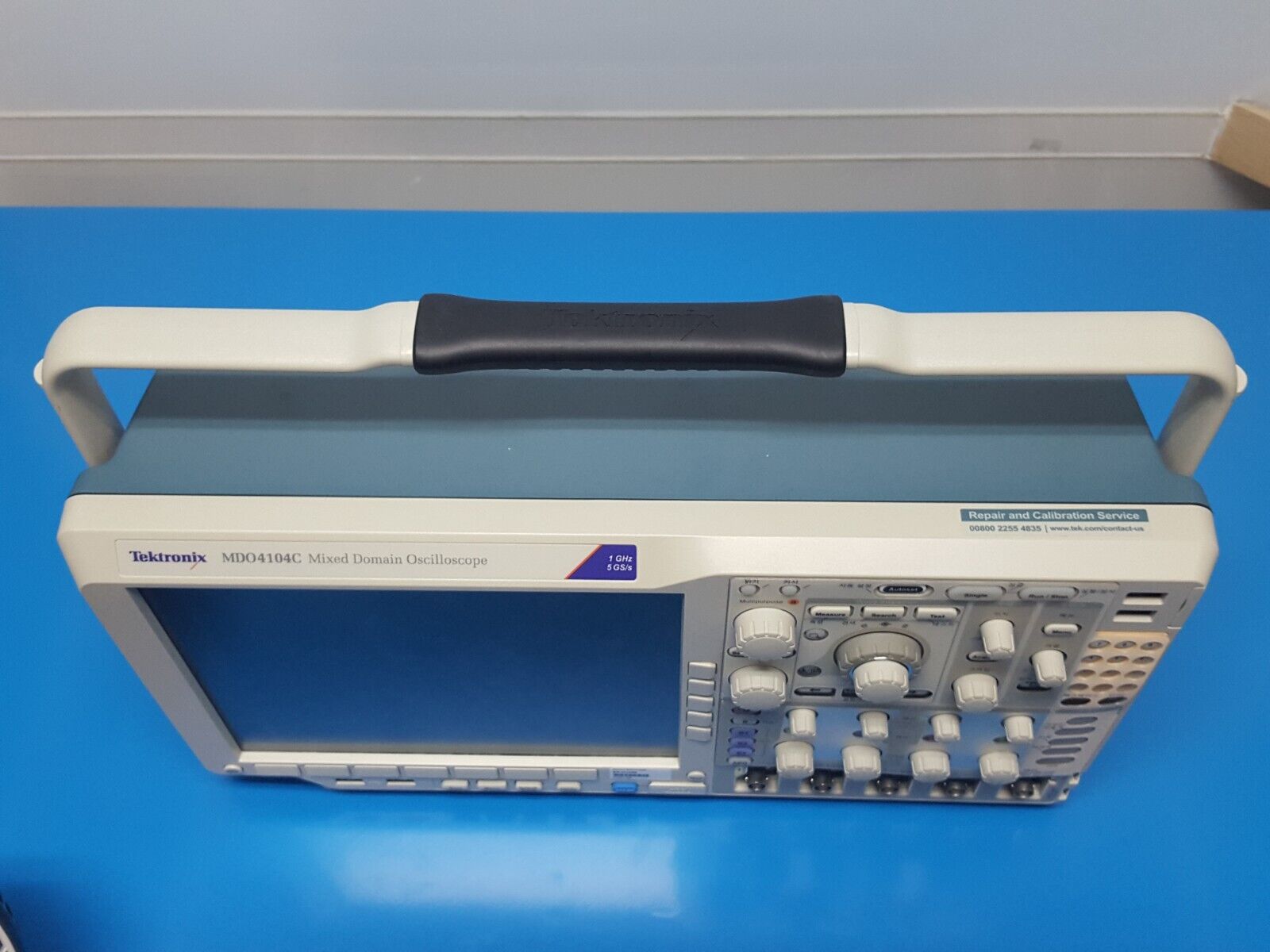

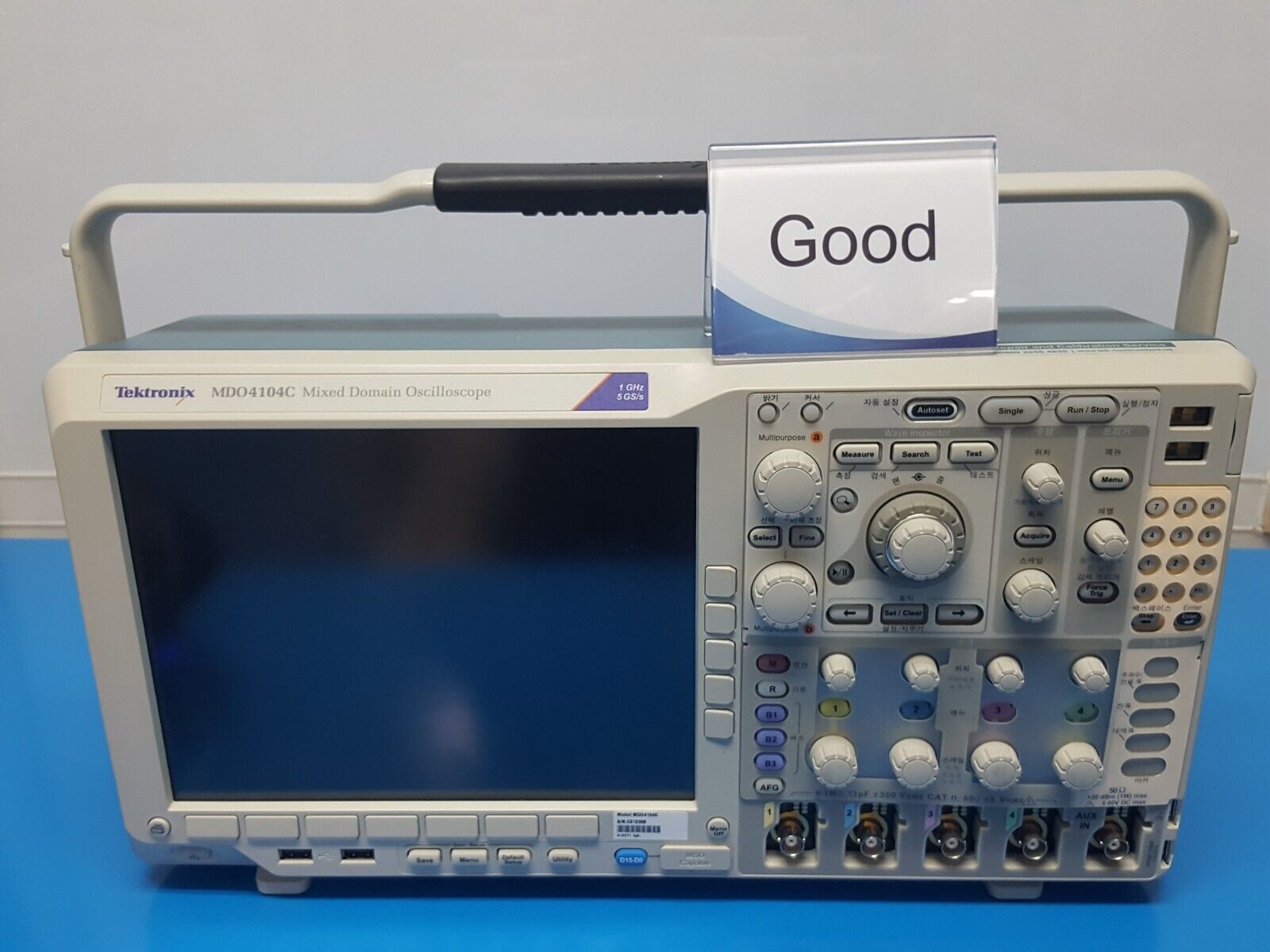

Mixed Domain Oscilloscope Tektronix MDO4104C.

- Analog channels : 4

- Analog channel bandwidth: 1 Ghz

- Rise time :  350 ps

- Sample rate (1 ch) : 5 GS/s

- Sample rate (2 ch) : 5 GS/s

- Sample rate (4 ch)

 Without option SA3 or SA6 : 5 GS/s

With option SA3 or SA6: 2.5GS/s

- Record length (1 ch) :  20 M

- Record length (2 ch) : 20 M

- Record length (4 ch) : 20 M

- Digital channels with MDO4MSO option: 16

- Arbitrary Function Generator outputs with MDO4AFG option: 1

- Spectrum analyzer channels with option SA3 or SA6: 1

- With Option SA3 : 9 kHz – 3 GHz

- With Option SA6 : 9 kHz – 6 GHz
