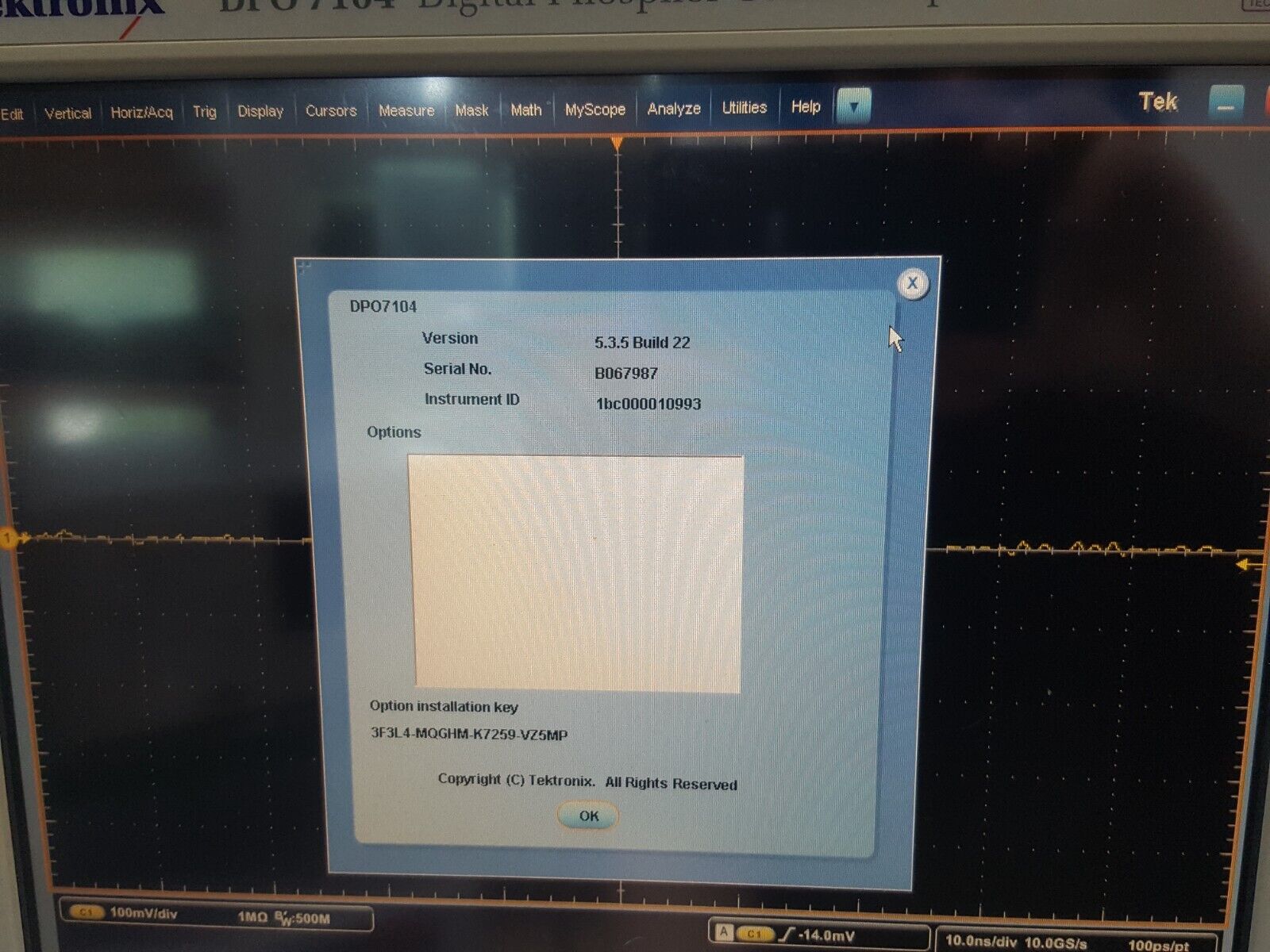

Máy hiện sóng hình ảnh kỹ thuật số. Tektronix DPO7104

Máy hiện sóng hình ảnh kỹ thuật số. Tektronix DPO7104

- Băng thông 1GHz

- 4 kênh

- Rise Time 10% to 90% (typical): 300 ps

- Rise Time 20% to 80% (typical): 200 ps

- DC Gain Accuracy : ±1% with offset/position set to 0
- Bandwidth Limits : Depending on instrument model: 3.0 GHz, 2.5 GHz, 2 GHz, 1 GHz, 500 MHz, 250 MHz or 20 MHz
- Input Coupling AC, DC, GND
- Input Impedance (software selectable) : 1 MΩ ±1% with 13 pF ±2 pF or 50 Ω ± 1%
- Input Sensitivity 1 MΩ: 1 mV/div to 10 V/div 50 Ω: 1 mV/div to 1 V/div
- Vertical Resolution : 8 bit (>11 bit with averaging)
- Max Input Voltage, 1 MΩ  : ±150 V CAT I, derate at 20 dB/decade to 9 VRMS above 200 kHz
- Max Input Voltage, 50 Ω :  5 VRMS, with peaks less than ±24 V
- Position Range:  ±5 divisions
- Offset Range 1 mV/div to 50 mV/div: ±1 V
50.5 mV/div to 99.5 mV/div: ±1.5 V to 10 Divisions
100 mV/div to 500 mV/div: ±10 V
505 mV/div to 995 mV/div: ±15 V to 10 Divisions
1 V/div to 5 V/div: ±100 V
5.05 V/div to 10 V/div: ±150 V to 10 Divisions
