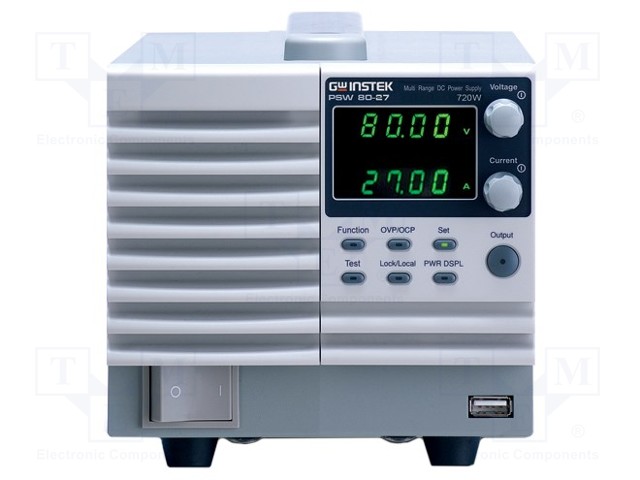

Máy cấp nguồn DC PSW80-27

38.325.000₫

Mã sản phẩm: GW Instek PSW80-27

Thương hiệu: GWinstek

Tình trạng: Còn hàng

GW Instek PSW80-27

Contact us for best price

Số lượng:
MUA NGAY
Tư vấnhotline0247-7777-883

Specifications

  • Accessories: ;  User Manual (CD) x 1; AC Power Cord x 1, USB Cable, Output terminal cover,  Basic Accessory Kit, Test leads: 1x red, 1x black
  • Rated Output Voltage: 80V
  • Rated Output Current: 27A
  • Rated Output Power:720W
  • Power Ratio: 3
  • Constant Voltage Mode
  •      Line Regulation    mV    43
  •      Load Regulation    mV    45
  •      Ripple and Noise    p-p    mV    80
  •                                         r.m.s    mV    11
  •      Temperature coefficient    ppm/°C    100ppm/°C of rated output voltage,after a 30 minute warm-up.
  •      Remote sense compensation voltage    V/wire    0.6
  •      Rise Time:   Rated Load    ms    50
  •                              No Load    ms    50
  •      Fall Time      Rated Load    ms    50
  •                              No Load    ms    500
  •      Transient response time: 1ms
  • Constant Current Mode :
  •      Line regulation    mA    32
  •      Load regulation     mA    32
  •      Ripple and noise    r.m.s    mA    54
  •      Temperature coefficient    ppm/°C    200ppm/°C of rated output current, after a 30 minute  warm-up.
  • Protection Function
  •      OVP    Setting range    V    8-88
  •                   Setting accuracy         ± (2% of rated output voltage)
  •      OCP    Setting range    A    2.7-29.7
  •                  Setting accuracy         ± (2% of rated output current)
  •      Over temperature protection (OTP): Turn the output off.
  •      Low AC input protection (AC-FAIL): Turn the output off.
  •      Power limit (POWER LIMIT)
  •                Operation         Over power limit.
  •                 Value (fixed)         Approx. 105% of rated output power
  • Front Panel
  •      Display, 4 digits
  •               Voltage accuracy 0.1% +    mV    20
  •               Current accuracy 0.1% +    mA    40
  • Programming and Measurement (Interface)
  •       Voltage programming accuracy 0.1% +    mV    10
  •       Current programming accuracy 0.1% +    mA    30
  •       Voltage programming resolution    mV    2
  •       Current programming resolution    mA    2
  •       Voltage measurement accuracy 0.1% +    mV    10
  •       Current measurement accuracy 0.1% +    mA    30
  •       Voltage measurement resolution    mV    2
  •       Current measurement resolution    mA    2
  • Input Characteristics: 80V
  •      Nominal input rating: 100Vac to 240Vac, 50Hz to 60Hz, single phase
  •      Input voltage range: 85Vac ~ 265Vac
  •      Input voltage range: 47Hz ~ 63Hz
  •      Maximum input current
  •                  100Vac: 10A
  •                  200Vac: 5A
  •      Inrush current:< 50A for 720W
  •      Maximum input power:1000VA
  •      Power factor
  •                  100Vac: 0.99
  •                   200Vac: 0.97
  •      Efficiency
  •                  100Vac: 78%
  •                   200Vac: 80%
  •      Hold-up time: 20ms or greater
  • Analog Programming and Monitoring
  •      Series and Parallel Capability
  •               Parallel number    Units    3
  •                Series Number    Units    2
  • USB: TypeA: Host, TypeB: Slave, Speed: 1.1/2.0,
  • USB Class: CDC(Communications Device Class)
  • LAN: MAC Address, DNS IP Address, User Password,Gateway IP Address, Instrument IP Address, Subnet Mask
  • GPIB: Optional: GUG-001 (GPIB to USB Adapter)
  • General Specifications
  • Weight (main unit only): Approx. 5.3kg
  • Dimensions (WxHxD): 142×124×350mm
