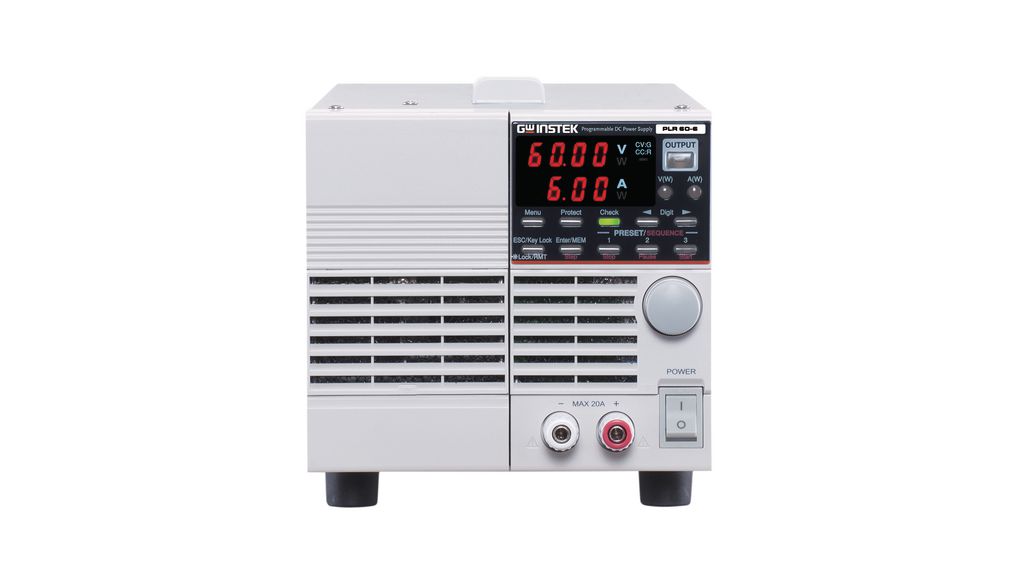

Máy cấp nguồn DC PLR 60-6

Specifications

• Voltage 0V ~ 60V
• Current 0 ~ 6A
• Power 360W
• REGULATION (CV)
•  Load 5mA
•  Line 4mA
• REGULATION (CC)
•  Load 5mA
•  Line 1mA
• RIPPLE & NOISE (Noise Bandwidth=20MHz ; Ripple Bandwidth = 1MHz)
•  CV p-p 30mVp-p
•  CV rms 0.5mVrms
•  CC rms 5mArms
• READBACK ACCURACY (23°C±5°C, after 30 mins warm-up)
•  Voltage (0.1%rdg+2digits)
•  Current (0.5%rdg+2digits)
•  Power (0.7%rdg+1.5%F.S.)
• SETTING RESOLUTION
•  Voltage 10mV
•  Current 10mA
• Power Source Single-phase 100VAC to 240VAC, 50Hz to 60Hz
• Interface
•  RS-232C/LAN (Standard ) ; GPIB/USB (Option)
• Analog Control Yes
• Dimension & Weight 139.5 (H) x 140(W) x
• 415.5(D)  Approx. 5.2kg
