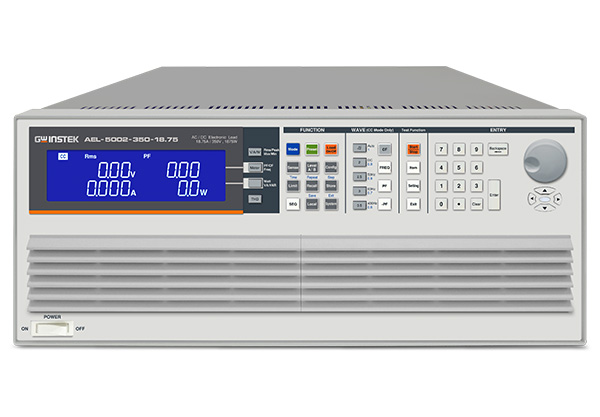

Tải điện tử GW Instek AEL-5002-350-18.75

Specifications

• Power (W): 1875 W
• Current(Ampere): 18.75 Arms / 56.25Apeak
• Voltage: 50~350Vrms / 500Vdc
• FREQUENCY Range : DC,40~440Hz(CC,CP Mode) , DC~440Hz(LIN,CR,CV Mode)
•  Constant Current Mode for Sine-Wave
• Range: 0~18.75A
• Resolution: 0.3125mA/16bits
• Linear Constant Current Mode
• Range: 0~18.75A
• Resolution: 0.3125mA/16bit
• Constant Resistance Mode
• Range: 3.2 ohm～64K ohm
• Resolution: 0.0052083mS/16bits
• Constant Voltage Mode
• Range: 50~350Vrms / 500Vdc
• Resolution: 0.01V
• Constant Power Mode
• Range: 1875W
• Resolution: 0.1W
• Dimension( H x W x D ): 177 x 440 x 558 mm
• Weight: 21.5Kg
• Optional Accessories
• PEL-022 GPIB Card
• PEL-023 RS-232 Card
• PEL-024 LAN Card
• PEL-025 USB Card
• PEL-025 USB Card
