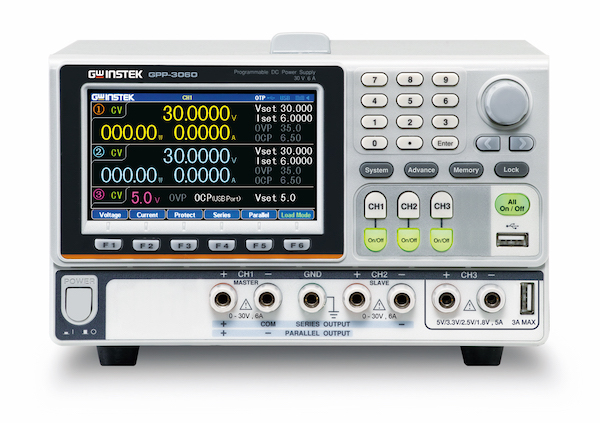

GW Instek GPP-3060

Features

• 4.3”TFT LCD Display
• Setting resolution: 1mV / 0.1mA; read back resolution: 0.1mV / 0.1mA
• Low ripple noise: ≦1mVrms/ ≦2mArms
• Transient response time: ≦100µS
• Load function (CC, CV, CR mode)
• Tracking series and parallel function without additional external wiring
• Utilizing hardware to realize over voltage protection / over current protection / over temperature protection
• Delay function / output monitoring function / output recorder function
• Supports setting value, measurement value and output waveform display
• Sequential output function and built-in 8 template waveforms
• The output recorder function records the output voltage & current parameters with a minimum recording interval of 1 second.
• Provides 10 sets of memory for each sequence/delay/recorder/panel setting condition
• GPP-3060/6030 supports a USB (Type A) output terminal
• Intelligent temperature control fan effectively reduces noise
• Standard: RS-232, USB, LAN, Ext I/O ; Optional(manufacturer installed only): GPIB
